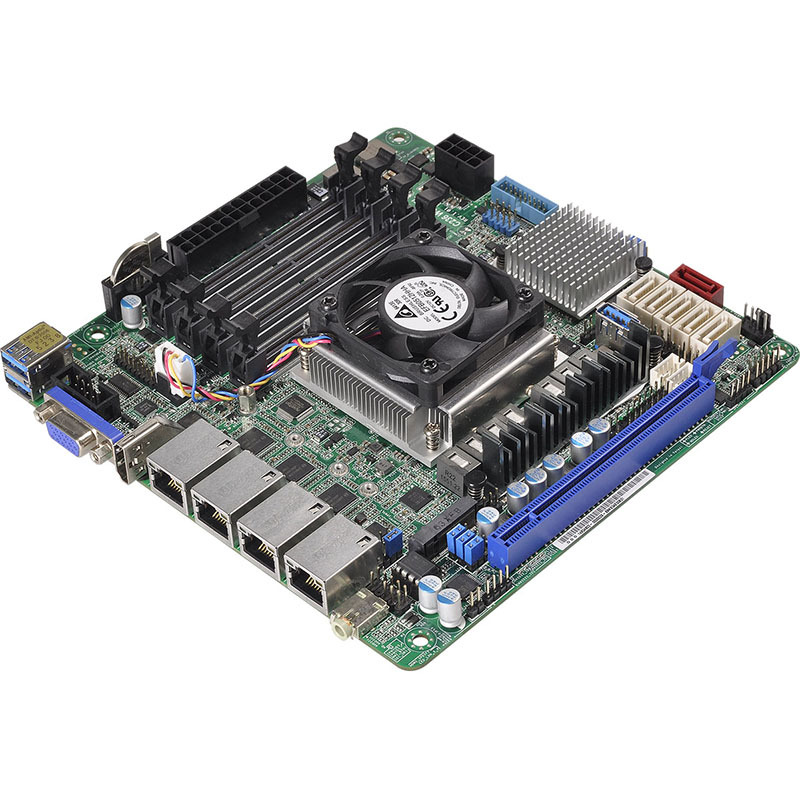

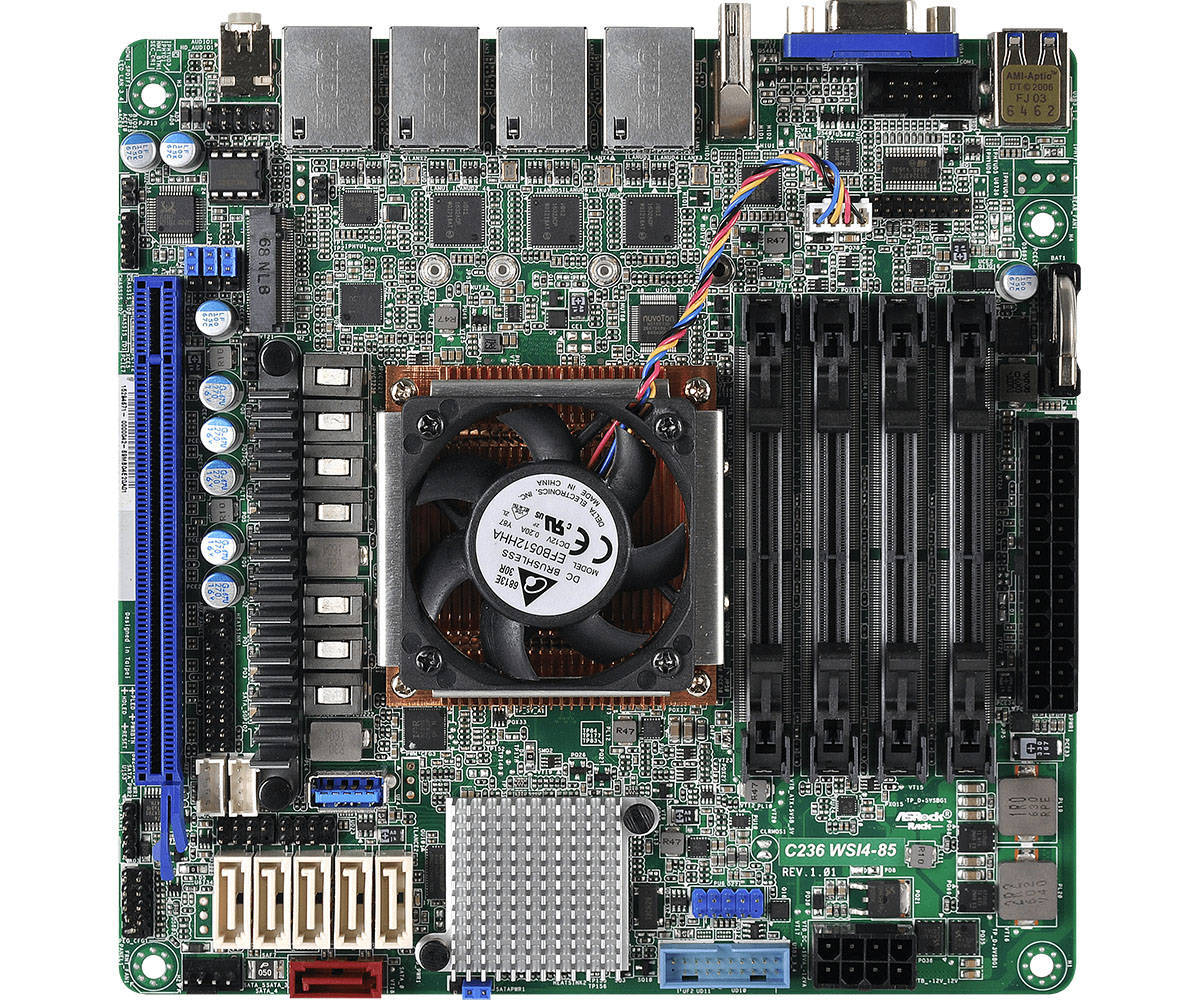

C236 WSI4-85
型号C236 WSI4-85
Intel Xeon E3-1500 v5 Series Processors BGA
Supports Dual channel DDR4 2133/1866 ECC/Non-ECC UDIMM max 64 GB
Supports 6 SATA3 by C236
Supports 1x PCIe 3.0 x16
Supports Intel i210*3+Intel i219 LM*1
立即查詢
详细规格
| 物理信息 | |
| 型式 | - Mini ITX |
| 尺寸 | - 6.7'' x 6.7'' (17.02 cm x17.02 cm) |
| 处理器系统 | |
| CPU | - 65W:E3-1585 V5 |
| 插槽 | - BGA 1440 |
| 芯片组 | - Intel® C236 |
| 系统内存 | |
| 容量 |
- 4 x DDR4 DIMM slots - Supports up to 64GB ECC SO-DIMM / Non ECC SO-DIMM |
| 类型 |
- ECC SO-DIMM - Non ECC SO-DIMM |
| 每个DIMM支持的 DIMM 尺寸 |
- ECC SO-DIMM: 4G, 8G, 16G - Non ECC SO-DIMM: 4G, 8G, 16G |
| DIMM Frequency |
- Non-ECC SO-DIMM: 2133MHz - ECC SO-DIMM: 2133MHz |
| 电压 | - 1.2V |
| 扩展插槽 | |
| PCIe x 16 | - SLOT7: PCIe3.0 x16 |
| 存储 | |
| SATA 控制器 | - C236: 6x SATA3 6Gb/s, support RAID 0, 1, 5, 10 |
| 以太网 | |
| 接口 | - 1000 /100 /10 Mbps |
| 网络控制器 |
- 4 x RJ45 GLAN by Intel® i210+Intel® I219LM - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE |
| 显示 | |
| 控制器 | - CPU pGFX |
| 音頻 | |
| 音频编解码器 | - Realtek ALC887 |

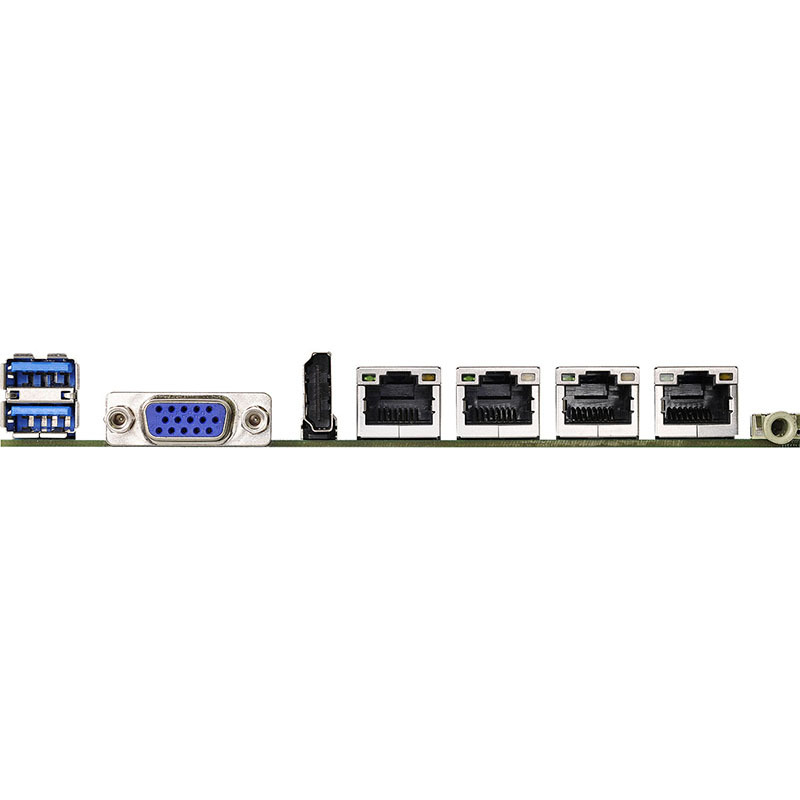

| 后侧面板 I/O 接口 | |
| HDMI | - 1 |
| VGA 接口 | - 1x D-sub |
| USB 3.0 接口 | - 2 |
| 网络接口 |
- RJ45: 4x GLAN(by Intel® i210+ Intel® i219) - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| 音頻 | - 1 |
| 内置接口 | |
| HDMI_SPDIF | - 1 |
| 串口连接插座 | - 1 |
| SATA DOM | - 1 |
| 辅助面板接头 | - 1 (includes chassis intrusion and front LAN LED) |
| TR1 接口 | - 1 |
| TPM 接口 | - 1 |
| 蜂鸣器 | - 0 |
| 风扇接口 | - 2(1CPU/1Front) |
| ATX 电源 | - 1x (24-pin) |
| DC IN | - 1 x (8-pin) |
| USB 3.2 (Gen1) 连接头 | - 1 ( support 2 USB3.0) |
| USB 2.0 连接头 | - 1 ( support 2 USB3.0) |
| A 型 USB 3.2 (Gen1) 连接头 | - 1 |
| NMI 按钮 | - 1 |
| 前面板 | - 1 |
| SATA Power Connector | - 2 x (4-pin) |
| 高保真音频接口 | - 1 |
| 扬声器 | - 1 |
| SGPIO Header | - 2 |
| ME/SPS Recovery | - 1 |
| Clear CMOS | - 1(short pin) |
| 系统 BIOS | |
| BIOS 类型 | - 128Mb AMI UEFI Legal BIOS |
| BIOS 功能 |
- Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8.0 Support - ASRock Rack Instant Flash |
| 硬件监控 | |
| 温度 |
- CPU Temperature Sensing - System Temperature Sensing - System TR Temperature Sensing |
| 风扇 |
- CPU/Front Fan Tachometer - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU/Front Fan Multi-Speed Control |
| 电压 | - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Voltage |
| 支持操作系统 | |
| 操作系统 |
Microsoft® Windows® - Server 2008 R2 SP1 (64 bit) - Server 2012 (64 bit) - Server 2012 R2 (64 bit) *Please refer to our website for the latest OS support list.
Linux - RedHat Enterprise Linux Server 6.6 (32 / 64 bit) / 7.0 (64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit) / 12.0 (64 bit) - Ubuntu 15.04 (64 bit) / 15.10 (64 bit) (AHCI mode) |
| 使用环境 | |
| 温度 | Operation temperature Range: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
内存支持列表
| 类型 | 速度 | 内存条 | 容量 | 供应商 | 模块 | 型号 | 单元 |
|---|---|---|---|---|---|---|---|
| DDR4 | 2666 | ECC SODIMM | 32GB | Samsung | M474A4G43MB1-CTDQ | 901 K4A8G085WMBCTD | Sec |
| DDR4 | 2133 | ECC SODIMM | 8GB | Apacer | 78.C2GF1.AF10B | H5AN4G8NMFA | Skhynix |
| DDR4 | 2133 | SODIMM | 8GB | G-RAM | GD4HY8GS2133RF-TFC | H5AN4G8NMFR | Skhynix |
| DDR4 | 2133 | ECC SODIMM | 8GB | Kingston | KVR21SE15D8/8 | H5AN4G8NMFR | Hynix |
| DDR4 | 2133 | ECC SODIMM | 8GB | V-Color | TA8G18C15-TF | 521TWA4G8H-21CS | V-Color |
| DDR4 | 2133 | ECC SODIMM | 4GB | Apacer | 78.B2GF1.AF00B | H5AN4G8NMFR | Skhynix |
| DDR4 | 2133 | ECC SODIMM | 4GB | Team | T4C8A10S61166 | K4A4G085WD | Sec |
| 型号 | C236 WSI4-85 |
