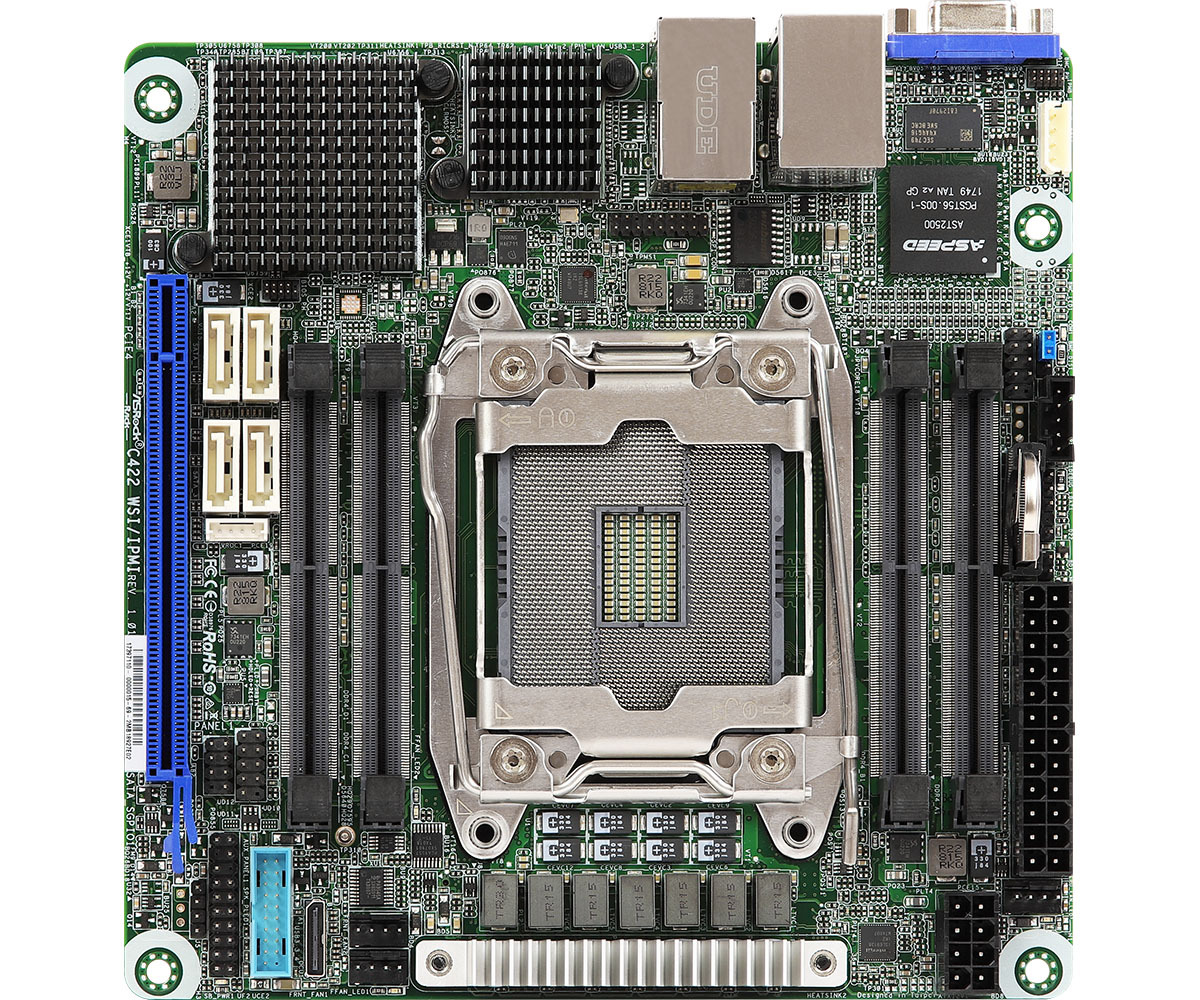

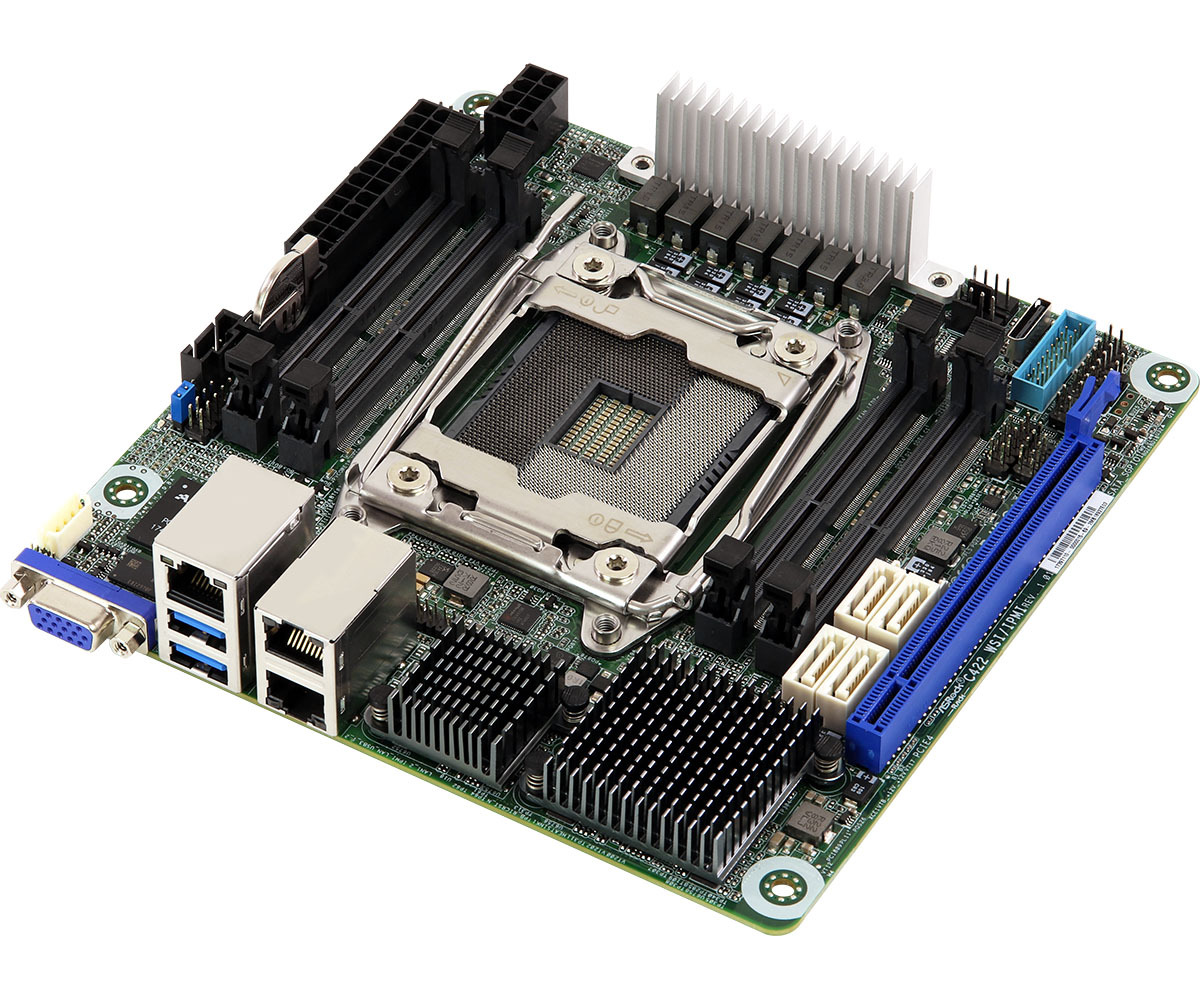

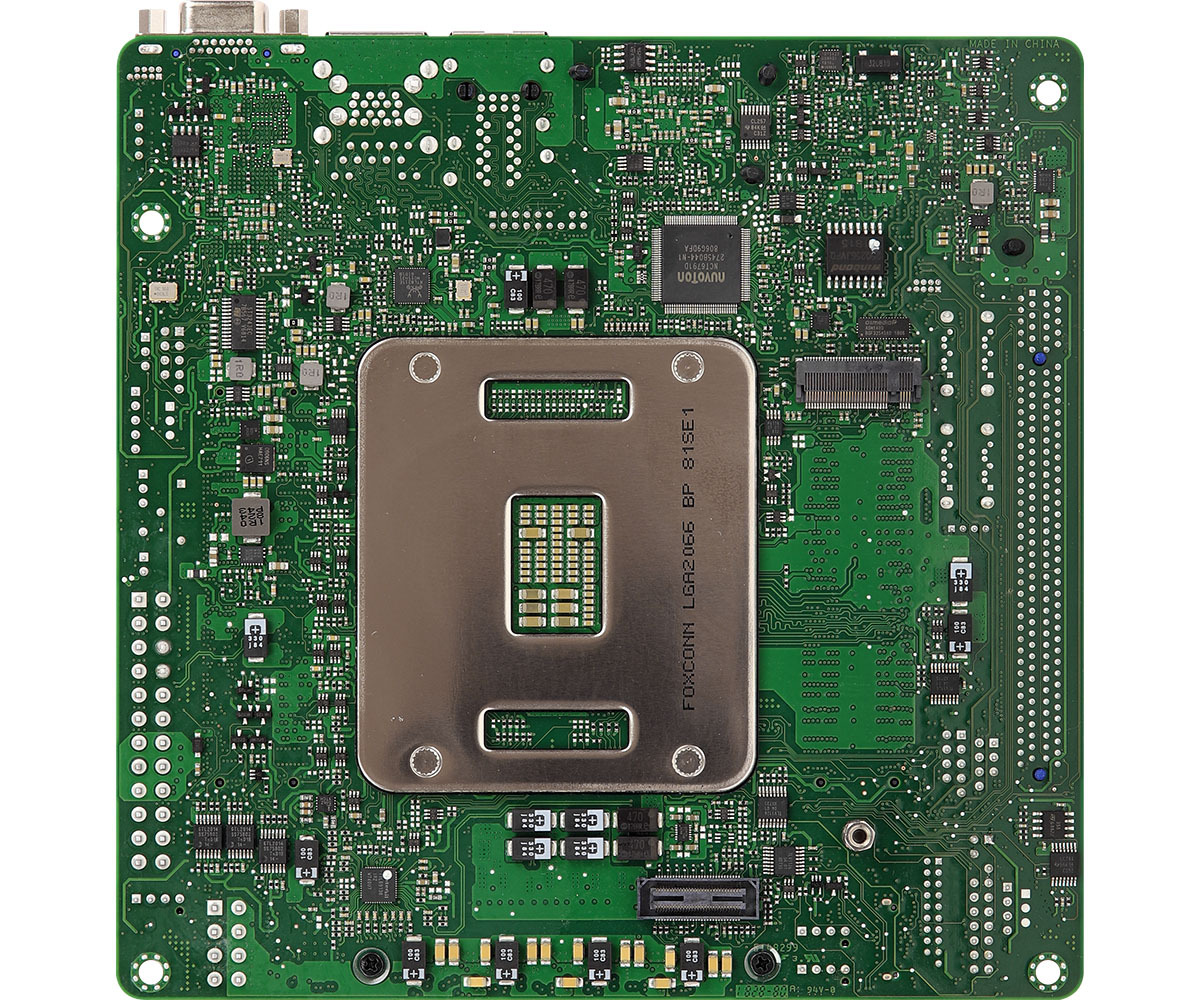

C422 WSI/IPMI

ModelC422 WSI/IPMI

Support Single Socket R4(LGA 2066), Intel Skylake-W Processors

Support Quad channels DDR4 ECC SO DIMM

Support 4 SATA3 by C422

Support 1x PCIe 3.0 x16

Support Intel i350

立即查詢

Specifications

Physical Status
Form Factor - Mini ITX
Dimensions - 6.7'' x 6.7'' (170.2 mm x170.2 mm)
 Processor System
CPU - Intel® Skylake-W Processors
Socket - Single Socket R4(LGA 2066)
Chipset - Intel® C422
 System Memory
Capacity - 4 DIMM slots
Type

- Quad Channel memory technology

- Support DDR4 2666/2400 ECC SO DIMM
DIMM Size Per DIMM - ECC SO DIMM: 16GB, 8GB, 4GB
Voltage - 1.2V
 Expansion Slot
PCIe x 16 - SLOT4: PCIe3.0 x16
 Storage
SATA Controller - C422: 4x SATA3 6Gb/s
OCuLink for U.2 - 1(from PCH)
 Ethernet
Interface - 1000 /100 /10 Mbps
LAN Controller

- 2 x RJ45 GLAN by Intel® i350

- Supports Wake-On-LAN

- Supports Energy Efficient Ethernet 802.3az

- Supports Dual LAN with Teaming function

- Supports PXE
 Management
BMC Controller - ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with Ikvm、vMedia support
IPMI Dedicated GLAN - 1 x Realtek RTL8211E for dedicated management GLAN
Features

- Watch Dog

- NMI
 Graphics
Controller - ASPEED AST2500
VRAM - DDR4 4GB

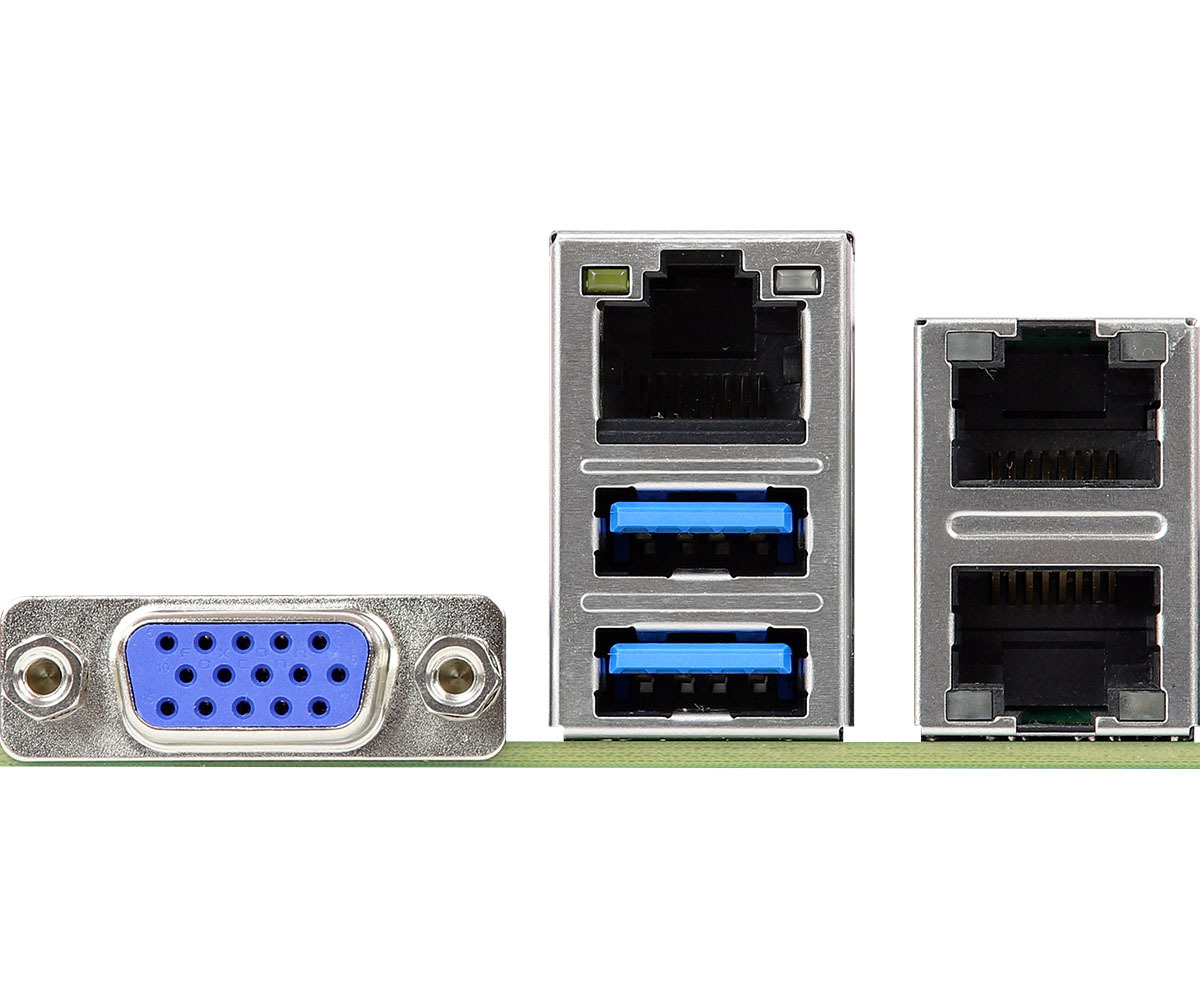

 Rear Panel I/O
PS/2 KB/Mouse - N/A
VGA Port - 1 x D-Sub
USB 3.2 Gen1 Port - 2
Lan Port

- RJ45:2+1(IPMI)

- LAN Ports with LED (ACT/LINK LED and SPEED LED)
 Internal Connector
COM Header - 1 (from SIO)
M.2 - 1( M-key, support 2280, PCIe3.0(x4)/ SATA 6Gb/s)
Auxiliary Panel Header - 1 (include chassis intrusion, location button & LED, front LAN LED)
TR1 Header - 1
TPM Header - 1
IPMB Header - 1
Fan Header - 3 Fans (1CPU/2 system)
ATX Power - 1x (24-pin) + 1x (8-pin)
USB 3.2 (Gen1) Header - 1 ( support 2 USB3.0)
NMI Button - 1
Front Panel - 1(rst, pwrbtn, hddled, pwrled)
Speaker Header - 1(4 pin)
Clear CMOS - 1
 System BIOS
BIOS Type - 256Mb AMI UEFI Legal BIOS
BIOS Features

- Plug and Play (PnP)

- ACPI 2.0 Compliance Wake Up Events

- SMBIOS 2.8.0 Support

- ASRock Rack Instant Flash
 Hardware Monitor
Temperature

- CPU Temperature Sensing

- System Temperature Sensing

- Card side Temperature Sensing

- System TR Temperature Sensing
Fan

- CPU/Rear/Front Fan Tachometer

- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)

- CPU/Rear/Front Fan Multi-Speed Control
Voltage

- Voltage Monitoring:

Vcore, VCCSA, VCCIO, VCCMAB, VCCMCD, 3v, 5v, 12v,1.05V_PCH, 1.05V_PCH_PHY, +BAT, 3VSB, 5VSB, 5V_Dual
 Support OS
OS

Microsoft® Windows®

- Windows® 10 (64 bit)

Linux

- RedHat Enterprise Linux Server 6.9 (64 bit) / 7.3 (64 bit) /7.5 (64 bit)

- SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP2 (64 bit) /12 SP3 (64 bit)

- Ubuntu 16.04 (64 bit) / 16.10 (64 bit)

Virtual

- VMWare® Workstation 12

- Citrix XenServer 7.5

- Win hyper-V Server 2016
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C





CPU Support List

2066 Xeon W-2295(L1) Cascade Lake-W 3.00 GHz   24.75MB P1.10
2066 Xeon W-2275(L1) Cascade Lake-W 3.30 GHz   19.25MB P1.10
2066 Xeon W-2265(L1) Cascade Lake-W 3.50 GHz   19.25MB P1.10
2066 Xeon W-2255(L1) Cascade Lake-W 3.70 GHz   19.25MB P1.10
2066 Xeon W-2245(L1) Cascade Lake-W 3.90 GHz   16.5MB P1.10
2066 Xeon W-2235(L1) Cascade Lake-W 3.80 GHz   8.25MB P1.10
2066 Xeon W-2225(L1) Cascade Lake-W 4.10 GHz   8.25MB P1.10
2066 Xeon W-2223(L1) Cascade Lake-W 3.60 GHz   8.25MB P1.10
2066 Xeon W-2195(M0) Skylake-W 2.3GHz 100MHz 24.75MB All
2066 Xeon W-2175(M0) Skylake-W 2.50GHz 100MHz 19.25MB All
2066 Xeon W-2155(U0) Skylake-W 3.3GHz 100MHz 13.75MB All
2066 Xeon W-2145(U0) Skylake-W 3.7GHz 100MHz 11MB All
2066 Xeon W-2135(U0) Skylake-W 3.7GHz 100MHz 8.25MB All
2066 Xeon W-2133(U0) Skylake-W 3.6GHz 100MHz 8.25MB All
2066 Xeon W-2125(U0) Skylake-W 4.0GHz 100MHz 8.25MB All
2066 Xeon W-2123(U0) Skylake-W 3.6GHz 100MHz 8.25MB All
2066 Xeon W-2104(U0) Skylake-W 3.2GHz 100MHz 8.25MB All
2066 Xeon W-2102(U0) Skylake-W 2.9GHz 100MHz 8.25MB All





Memory QVL

Type Speed DIMM Size Vendor Module Part No Cell
DDR4 3200 SODIMM 16GB Crucial CT16G4SFD832A.16FE1 9IE75D9WFL Micron
DDR4 2666 SODIMM 8GB A-DATA AD4S266638G19-BSSC K4A8G085WC BCTD Sec
DDR4 2666 SODIMM 8GB ADTEC ADS2400208G284SFS K4A4G085WF BCTD Sec
DDR4 2666 SODIMM 8GB Kingston KVR26S19S8/8 8QE75D9VPP Micron
DDR4 2666 ECC SODIMM 32GB Samsung M474A4G43MB1-CTDQ 901 K4A8G085WMBCTD Sec
DDR4 2666 SODIMM 16GB ADTEC ADS2400S16G284ME 9FE75D9VPP Micron
DDR4 2666 SO-RDIMM 16GB Apacer 78.D2GH0.4010B 804 K4A8G085WB BCTD Sec
DDR4 2666 SODIMM 16GB Crucial CT16G4SFD8266.16FE1 7KE75D9VPP Micron
DDR4 2400 ECC SODIMM 8GB A-DATA AD4B240038G17-BHYA H5AN8G8NAFR UHC Hynix
DDR4 2400 SO-RDIMM 8GB Apacer 78.C2GFQ.4000B K4A8G085WB BCRC Sec
DDR4 2400 ECC SODIMM 8GB Apacer 78.C2GF5.4010B K4A4G085WE BCRC Sec
DDR4 2400 ECC SODIMM 8GB Kingston KVR24SE17S8/8MA 6KA77D9SRJ Micron
DDR4 2133 SODIMM 8GB G-RAM GD4HY8GS2133RF-TFC H5AN4G8NMFR Skhynix
DDR4 2133 ECC SODIMM 4GB A-DATA AD4B2133W4G15-BHYA H5AN4G8NAFR TFC Hynix
DDR4 2133 ECC SODIMM 4GB Kingston KVR21SE15S8/4 H5AN4G8NMFR Hynix
